Outside Diameter

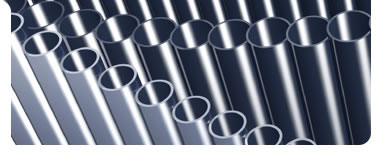

Hygienic Tube

OD ins	1/2	3/4	1	1 1/2	2
Wall	16g/1.63mm	16g/1.63mm	16g/1.63mm	16g/1.63mm	16g/1.63mm
Weights*	0.45	0.71	0.97	1.48	2.00

OD ins	2 1/2	3	4	4
Wall	16g/1.63mm	16g/1.63mm	16g/1.63mm	14g/2.03mm
Weights*	2.51	3.03	4.07	4.58

* Weights shown in kgs/mtr

When buying tube for hygienic applications, please note the following:

As per BS 4852 and ASTM 269/270 standards, this hygienic tube is fully annealed, with a recommended thickness of 1.63mm for OD of 1-3" and 2mm for 4" tube.

Although chemically identical to A269, tube of ASTM 270 standard is made to different tolerances of ovality and thickness. For use in processes with temperature and pressure changes, fully annealed tube is usually supplied with specifications for application. This tube is implicitly annealed, whereas un-annealed tube cannot be represented as A269 or A270.

The use of un-annealed tube may cause issues when:

• Welding thin wall tube to BS 4825 standard fittings
• Subjected to pressure and temperature changes
• There are high concentrations of chloride present
• Tubular components have differing levels of sulphur content
• Being formed, bent or otherwise manipulated.

Plain End Fittings

Plain End Fittings are mostly supplied to BS 4825 part 2 and are available in descaled and polished finishes in 304 and 316 Grades. Ends can be fitted and any product can be made in accordance with customer specifications. DIN 11852 metric fittings are also available.

180° Bend

Diam ins	1	1 1/2	2	2 1/2	3	4
Radius	38	57	76	95	114	152
A	65	85	110	135	155	195
B	80	118	157	195	235	310

45° Bend

Diam ins	1	1 1/2	2	2 1/2	3	4
Radius	38	57	76	95	114	152
A	21	29	42	54	64	86

90° Plain Bend: Long

Diam ins	1/2	3/4	1	1 1/2	2	2 1/2	3	4
Radius	38	38	38	57	76	95	114	152
A	60	60	65	85	110	135	155	195

90° Plain Bend: Short

Diam ins	1	1 1/2	2	2 1/2	3	4
Radius	38	57	76	95	114	152
A	44	64	89	114	134	174

AS Pulled Reducing Tee

Dia A ins	1 1/2	2	2	2 1/2	3	3	4	4	4
Dia B ins	1	1 1/2	1	2	2 1/2	2	3	1 1/2	2
C	140	164	164	210	220	220	300	300	300
D	22	29	29	36	42	42	54	54	54

AS Pulled Tee

Diam ins	1	1 1/2	2	2 1/2	3	4
A	52	65	90	108	134	175
B	14	22	29	36	42	55

Full Equal Tee

Diam ins	1/2	3/4	1	1 1/2	2	2 1/2	3	4
A	38	46	44	64	89	114	134	174
